环境

.NET Framework 4.7.2 ， X64 , VS2022

依赖

OpenCvSharp.dll，OpenCvSharp.Extensions.dll，Sdcb.PaddleInference.dll, YamlDotNet.dll,  modnet-hrnet_w18

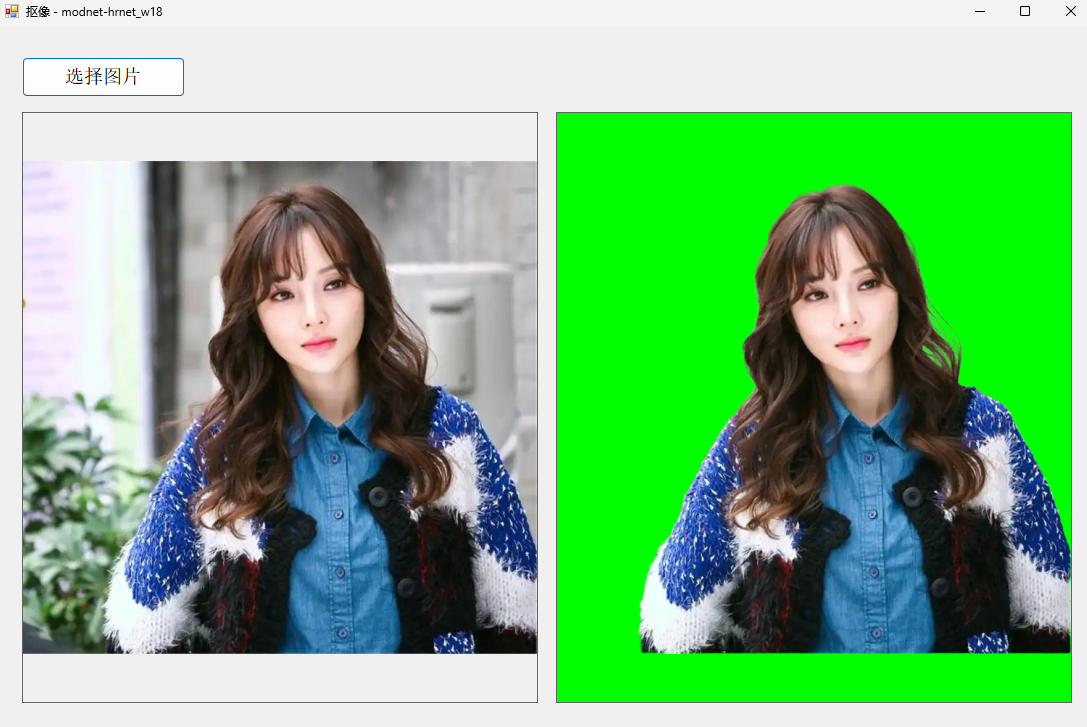

效果

页面

主逻辑代码

    public partial class Form1 : Form
    {
        private string imgFile = "";
        private string model_path = string.Empty;
        private int modelSize = 512;
        private PaddleSeger seger;

        public Form1()
        {
            InitializeComponent();
        }

        private void button1_Click(object sender, EventArgs e)
        {
            using (OpenFileDialog ofd = new OpenFileDialog())
            {
                ofd.Filter = "图像文件|*.jpg;*.png;";
                if (ofd.ShowDialog() == DialogResult.OK)
                {
                    imgFile = ofd.FileName;
                }
            }
            if (string.IsNullOrEmpty(imgFile))
            {
                return;
            }

            do_rec();
        }

        private async void do_rec()
        {
            var imgBs = File.ReadAllBytes(imgFile);
            var imgInit = Image.FromStream(new MemoryStream(imgBs)) as Bitmap;
            pb_init.Image = imgInit;
            Application.DoEvents();

            if (seger == null)
            {
                load_removebg();
            }

            var imgRst = await Task.Run(() =>
               removebg(imgBs)
            );
            pb_rst.Image = imgRst;
            Application.DoEvents();
        }

        private void load_removebg()
        {
            this.seger = new PaddleSeger(Application.StartupPath + "\model");
        }

        private Bitmap removebg(byte[] imgbs)
        {
            var image = Cv2.ImDecode(imgbs, ImreadModes.Color);

            int oldwidth = image.Cols;
            int oldheight = image.Rows;
            int maxEdge = Math.Max(image.Rows, image.Cols);
            float ratio = 1f * (float)this.modelSize / (float)maxEdge;
            int newHeight = (int)((float)image.Rows * ratio);
            int newWidth = (int)((float)image.Cols * ratio);
            var mat = image.Resize(new OpenCvSharp.Size(newWidth, newHeight), 0.0, 0.0, InterpolationFlags.Linear);
            int width = mat.Cols;
            int height = mat.Rows;
            bool flag3 = width != this.modelSize || height != this.modelSize;
            if (flag3)
            {
                mat = mat.CopyMakeBorder(0, this.modelSize - newHeight, 0, this.modelSize - newWidth, BorderTypes.Constant, new Scalar?(new Scalar(0.0, 0.0, 0.0)));
            }
            var mask = this.seger.Run(mat);
            bool flag4 = width != this.modelSize || height != this.modelSize;
            if (flag4)
            {
                Rect rect = new Rect(0, 0, width, height);
                mask = mask.Clone(rect);
            }

            #region  图像合并  和  尺寸恢复


            var m1 = image;
            var m2 = mask;

            m1 = m1.Resize(new OpenCvSharp.Size(oldwidth, oldheight));
            m2 = m2.Resize(new OpenCvSharp.Size(oldwidth, oldheight));


            using (var result = new Mat())
            {
                try
                {
                    using (var grayMat = new Mat())
                    using (var normalizedMat = new Mat())
                    {
                        if (m2.Channels() == 3)
                        {
                            Cv2.CvtColor(m2, grayMat, ColorConversionCodes.BGR2GRAY);
                        }
                        else
                        {
                            m2.CopyTo(grayMat);
                        }

                        if (grayMat.Type() == MatType.CV_32F || grayMat.Type() == MatType.CV_32FC3)
                        {
                            Cv2.Normalize(grayMat, normalizedMat, 0, 255, NormTypes.MinMax);
                            normalizedMat.ConvertTo(grayMat, MatType.CV_8UC1);
                        }

                        using (var rgbMat = new Mat())
                        {
                            Cv2.CvtColor(m1, rgbMat, ColorConversionCodes.BGR2RGB);

                            var channels = rgbMat.Split();

                            var allChannels = new List<Mat>();

                            allChannels.Add(channels[2]);
                            allChannels.Add(channels[1]);
                            allChannels.Add(channels[0]);
                            allChannels.Add(grayMat.Clone()); // Alpha

                            Cv2.Merge(allChannels.ToArray(), result);

                            foreach (var channel in channels)
                            {
                                channel.Dispose();
                            }

                            foreach (var channel in allChannels)
                            {
                                channel.Dispose();
                            }

                            return OpenCvSharp.Extensions.BitmapConverter.ToBitmap(result);
                        }
                    }
                }
                catch (Exception ex)
                {
                    MessageBox.Show($"处理图像时出错: {ex.Message}
调试信息:
{ex.StackTrace}");
                    return null;
                }
            }
            #endregion

        }

    }

Demo 下载地址：

https://download.csdn.net/download/xuezhandansha/90364899
